This knowledge article describes the setup of the AVM-1 (GXV3370) and the VOIP-20X (With IP Camera) in a peer-to-peer environment:

Assumptions:
  • Technician has fundamental knowledge in computer networking and Voice over Internet Protocol (VoIP) technologies is recommended for understanding this manual.
  • Technician has access to the AVM-1, IP Camera and the VOIP-20X Call Station
  • Customer network allowing RTP and SIP on the network segment the AVM-1, VOIP-200 and IP Camera units are connected to. There is no particular order that the devices need to be configured but the suggested config steps are below.
  • The AVM-1 (GXV-3370) is on firmware version  1.0.3.30, newer versions do not currently display the video stream correctly.
  • http://firmware.grandstream.com/Release_GXV3370_1.0.3.30.zip
STEPS:

Configure the IP Camera: (Screenshots can be enlarged by clicking on them)
  1. Log into the IP Camera using Internet Explorer, please launch internet explorer, using a right-click and then selecting run as administrator in order to install the necessary Active-X control. (Factory default IP: 192.168.0.123).
  2. Allow for the Device to run (Active-X).
  3. Log in using the credentials assigned to the camera (Factory default login: admin, password: admin).

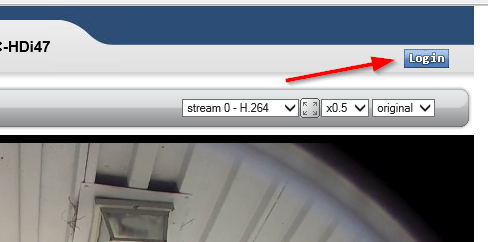

    1. IP Camera Login Button

  4. Once logged in, click on the SETUP button.
    1. IP Camera Login Fields

  5. First screen you should see is the NETWORK settings page. If not, click Network link in the left hand navigation under SETUP section.
  6. Set IP address for IP Camera (Static address highly suggested),  In this example, we set the camera to 192.168.100.112.
    1. IP Camera IP Address Settings

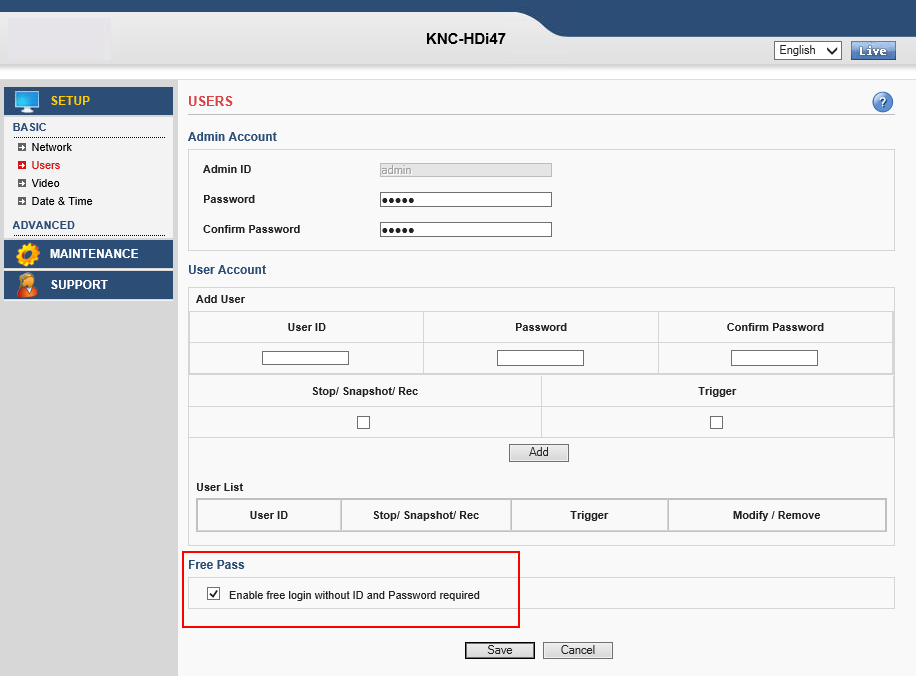

  7. Click on Users.
  8. Ensure the Free Pass "Enable free login without ID and Password required" checkbox is: CHECKED (This allows the AVM-1 to view camera).
    1. IP Camera Free Pass Setup

  9. Next, click on the VIDEO tab.
  10. Set the H.264 and the MJPEG settings to 1280x720.
    1. H.264 (This is what a VMS will most likely use.
      1. MJPEG, 1280x720, 30FPS
    2. MJPEG (THIS IS WHAT IS USED BY THE AVM-1(GXV3370))
      1. MJPEG, 1280x720, 20FPS
    3. IP Camera Video Settings

  11. Set the OSD (On Screen Display) - OPTIONAL
    1. IP Camera On Screen Display (OSD)

  12. Click on Date & Time
    1. Validate the date and time are correct. Configure if needed.
Configure the VOIP-200:
  1. Log into the VOIP-20X using Internet Explorer 8 or 9 OR Mozilla 3.5 and above (Factory default IP: 192.168.1.10)
  2. Click on the Configuration tab then click on IP settings item in the left navigation
  3. Assign an IP address that can communicate with the IP Camera and the AVM-1
    1. IP Address Settings VOIP-20X

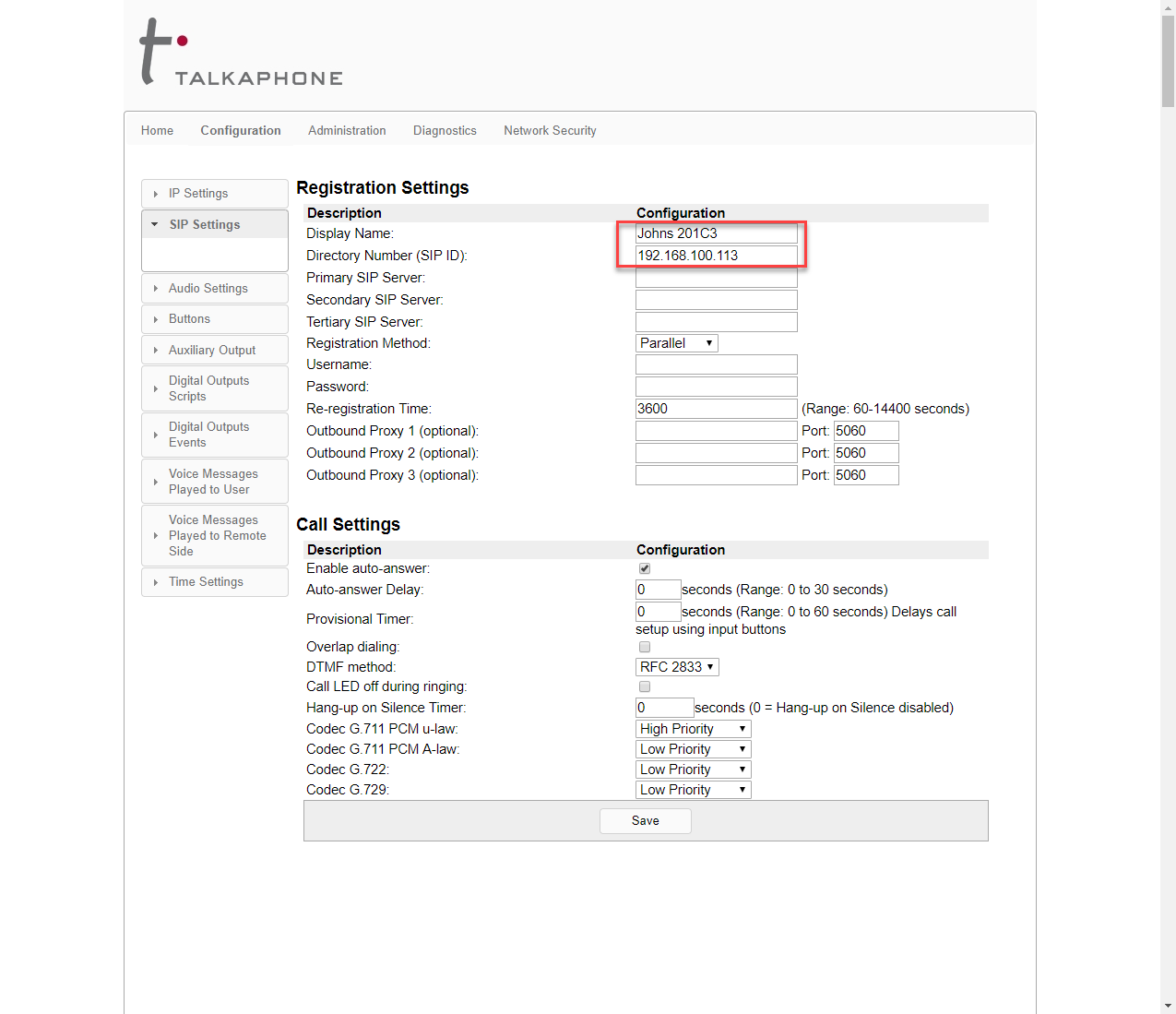

  4. Click on SIP Settings item in the left navigation
  5. Assign a Display Name and Directory Number (SIP ID) and click the Save button at the bottom of the page.
    1. In this example we have entered the IP Address that is assigned to the VOIP-200 (In Static IP mode) as the SIP ID, this will allow call back from the AVM-1 (GXV3370) that will also display the video.

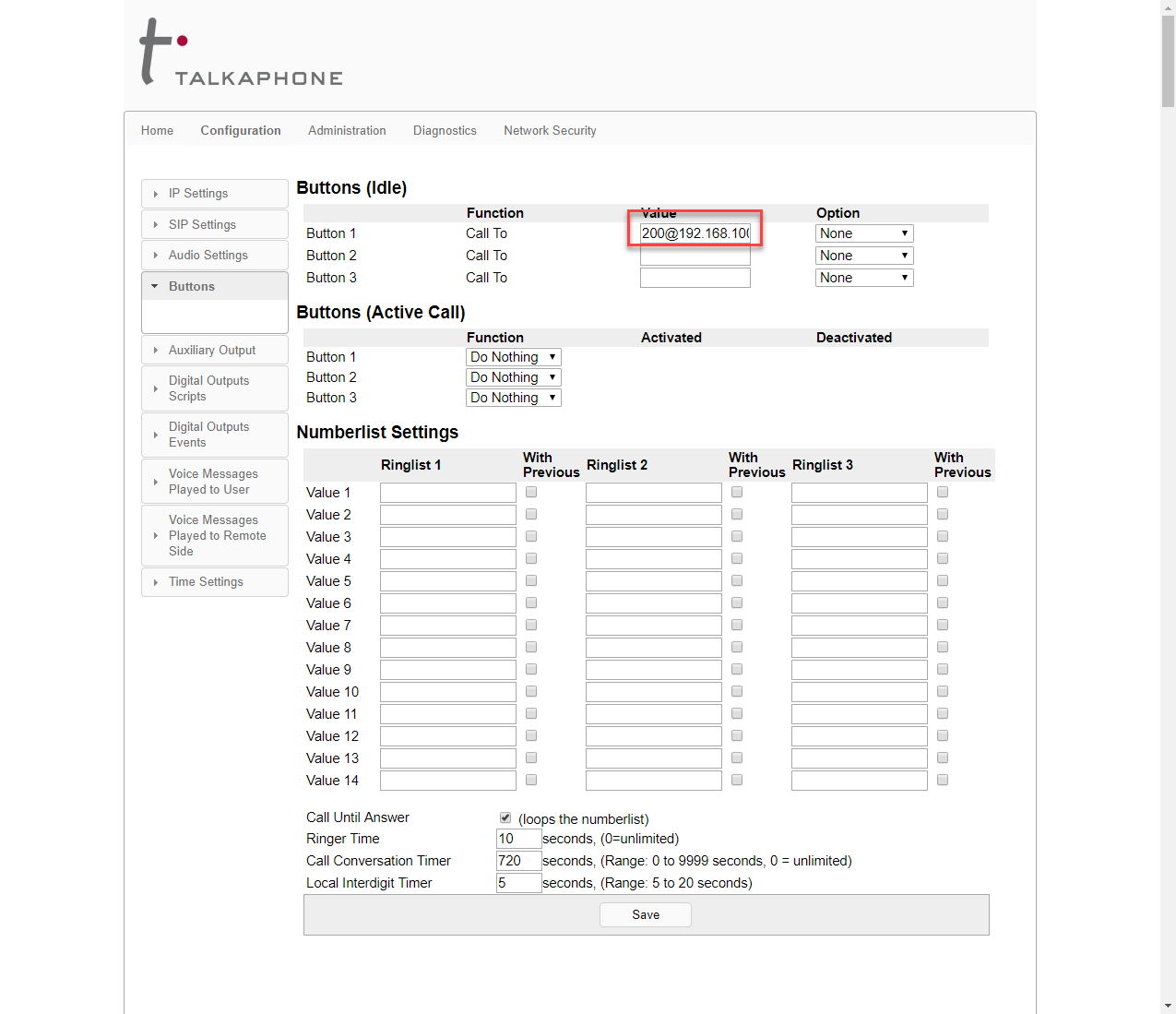

  6. Click on Buttons item in the left navigation
  7. Assign the AVM-1 to be called when button is pressed on the VOIP-20X, by entering the SIP User ID that will be assigned to the AVM-1 (GXV3370) and the IP address of the AVM-1 (GXV3370) with the format SIPUserID@IPAddress
    1. In this example, we are calling 200@192.168.100.114 which is what we assign to the AVM-1 (GXV3370) in the steps below.
    2. VOIP-20X Button Settings
Program the AVM-1 (Grandstream GXV3370) - Reference: Grandstream IP Phone User Manual

NOTE: For this example, we are configuring using Static IP and assigning an IP Address of 192.168.1.200
  1. Power up the AVM-1 and configure the IP address using the Touch Screen of the device
  2. Swipe to the right and tap the GXV3370's Settings application --> Ethernet Settings--> Wireless & Network --> IPv4 Settings
  3. Tap IPv4 Settings
  4. Tap on "Address Type" to select DHCP, Static IP or PPPoE as the address type.
    1. For DHCP, save the setting and the GXV3370 should be able to get IP address from the DHCP server in the network.
    2. For static IP, enter IP Address, Subnet Mask, Default Gateway, DNS Server and Alternative DNS server for the GXV3370 to correctly connect to network.
    3. For PPPoE, enter PPPoE account ID and password so the GXV3370 can get IP address from the PPPoE server.
  5. Once you have assigned an IP Address to the device, Open a web browser and navigate to the IP Address you assigned.
    1. In this example, we are using 192.168.1.200

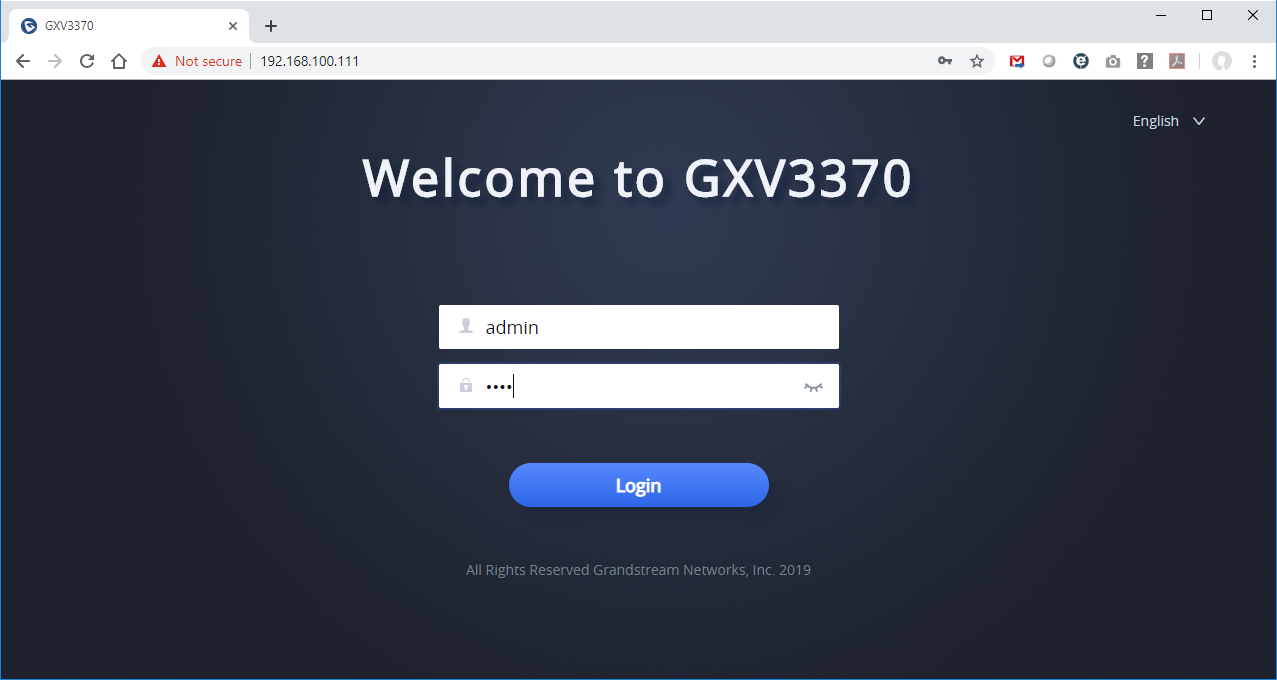

  6. Login to the AVM-1 (Factory default login: admin, password: admin)
    1. AVM-1 (GXV3370) Login Screen

  7. You will be prompted to set a new password.

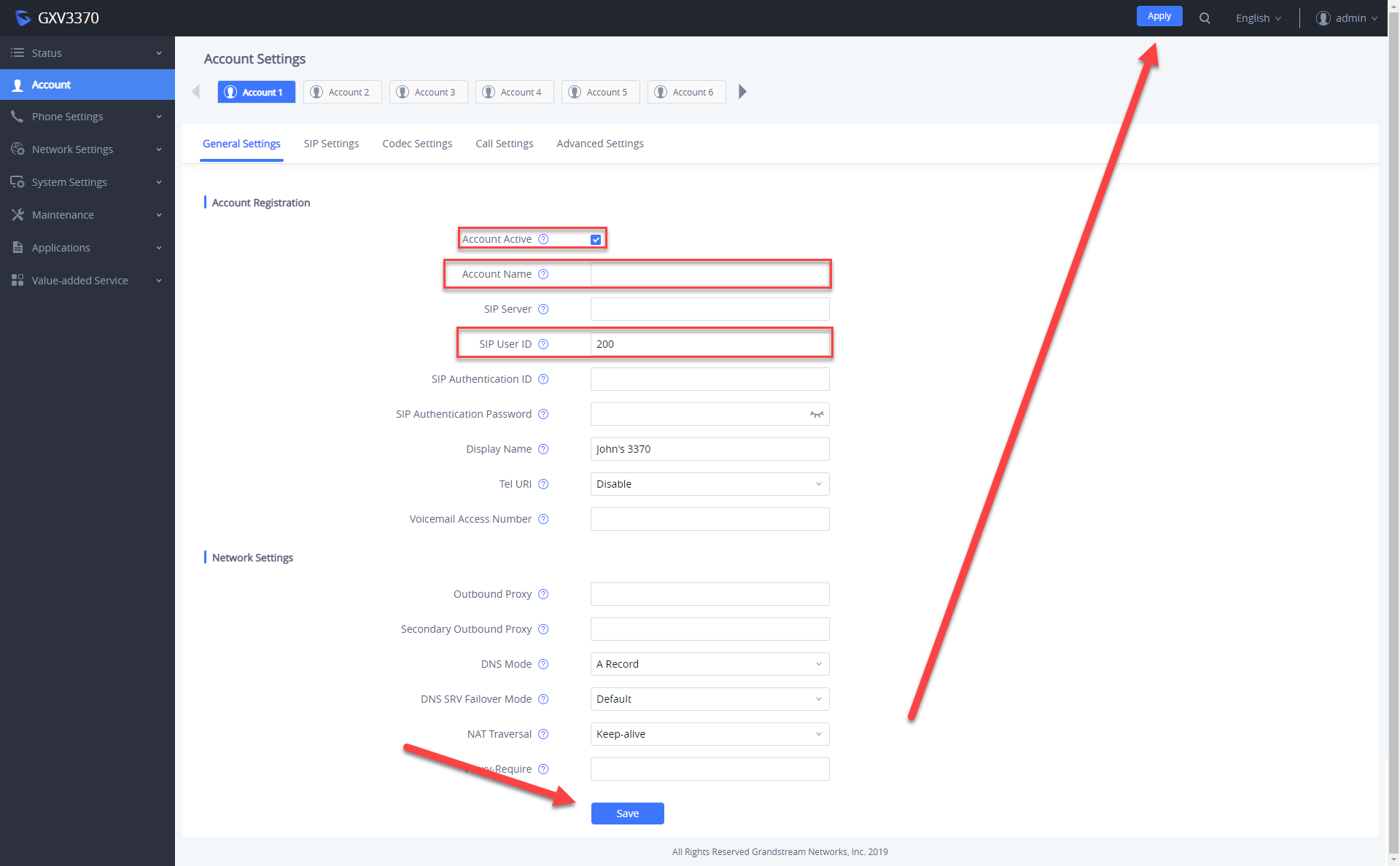

  8. Click on the Account tab on the left side of the screen, then click on Account 1 at the top of the page if it is not already selected, and then click the General Settings tab below that.
  9. Ensure Account Active check box is CHECKED.
  10. Enter an Account Name to be displayed on the AVM-1's display.
  11. Enter a SIP User ID. (In our example, we use SIP ID of 200).
  12. Click the Save button.
  13. Click the Apply button at the top of the page.
    1. AVM-1 (GXV3370) Account Settings

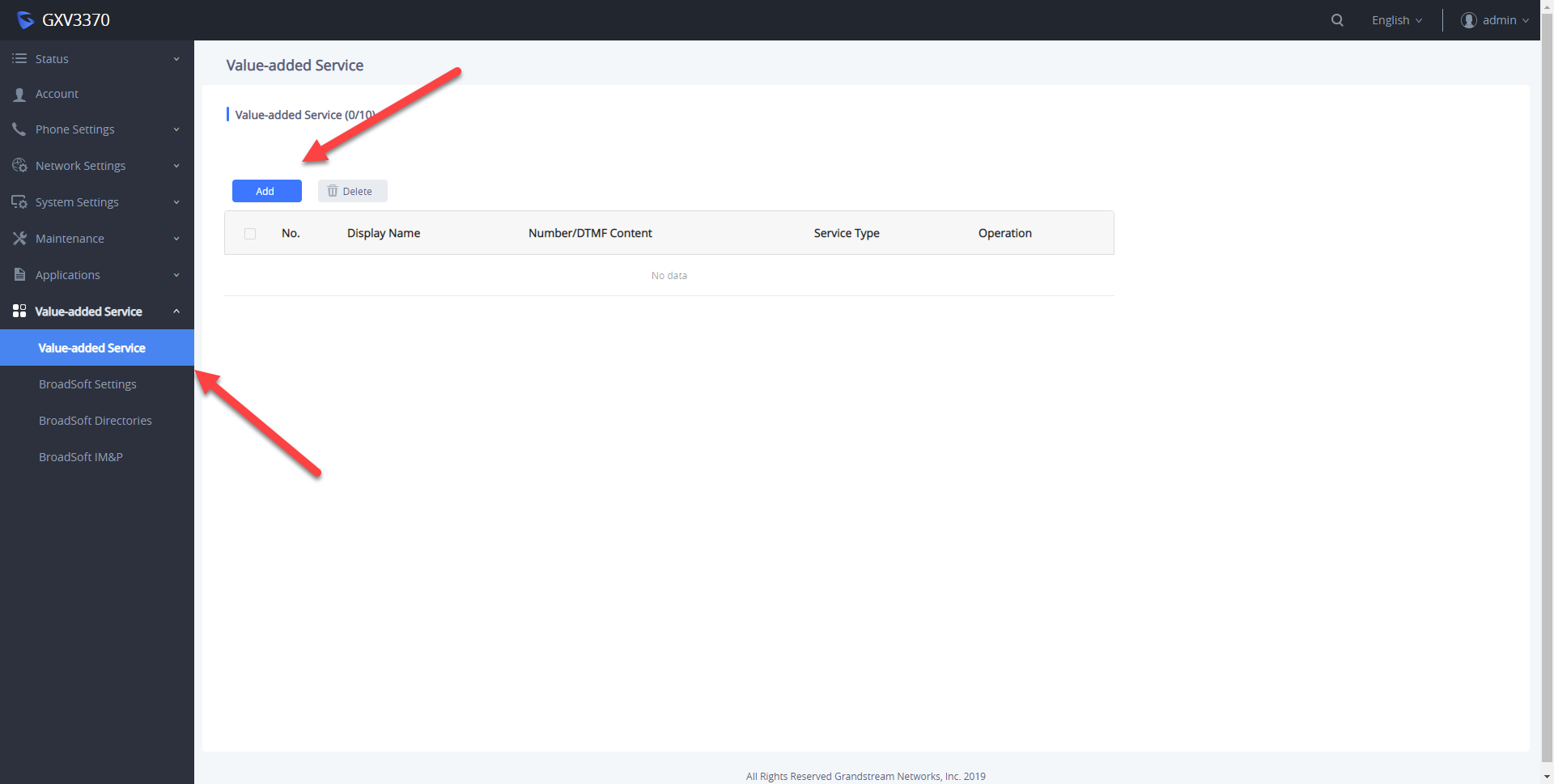

  14. Click on the Value-added Service item in the left hand navigation. Then click on Add.
    1. AVM-1 (GXV3370) Value-added Service

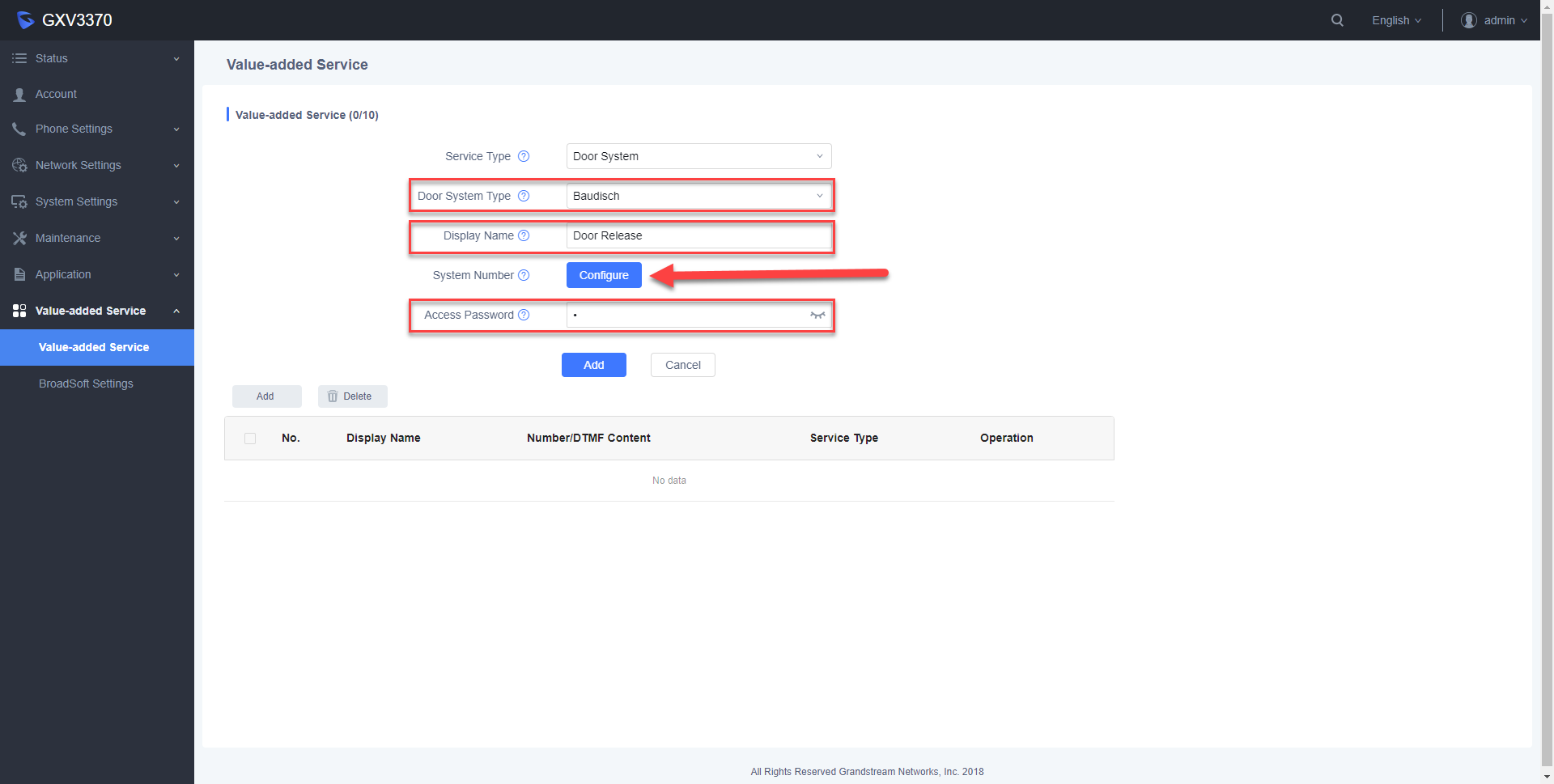

  15. Set the Door System Type to Baudisch.
  16. Set the Display Name, this will be displayed on screen as the label for the door release button, if needed.
  17. If using the VOIP-200 series device to open a door or gatea, set the Access Password to the value configured on the VOIP-200 Series device to activate the relay.
  18. Click the Configure button to open the System Number Configuration table.
    1. AVM-1 (GXV3370) Value-added Service Add
  19. In the System Number Config table, set the System Number  to the IP address and 5060 of the VOIP-20X you set earlier.
    1. Format: <ip_address>:5060
  20. Set the System Address to the URL of the video stream
  21.  URL using the following string (Replacing <ip_address> with the IP of the IP Camera you setup earlier).
    1. http://<ip_address>/ipcam/mjpeg.cgi
  22.  Then click OK. And you will be returned to the previous page.
    1. AVM-1 (GXV3370) System Number Config

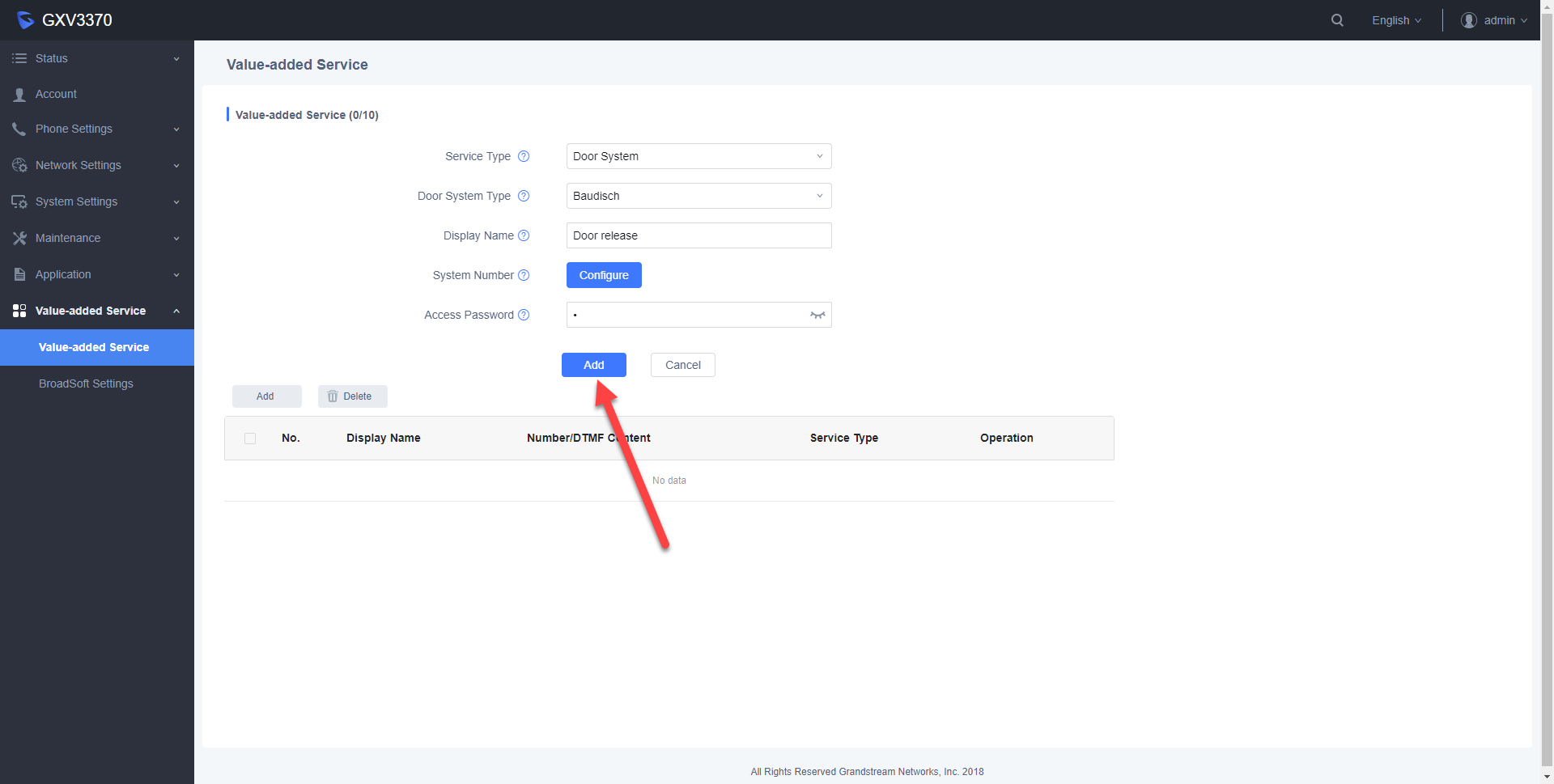

  23. Click the Add button.
    1. AVM-1 (GXV3370) Value-added Service Add
  24. Test the configuration by placing a call and verifying video and audio function correctly.
  25. Once the configuration has been verified, to disable configuration changes via the touch screen,  Click on System Settings --> Security Settings --> WEB/SSH.  Set the Configuration via Keypad Menu to Constraint Mode, and click save.
    1. AVM-1 (GXV3370) Security Settings


If you need additional assistance, please email us at support@talkaphone.com or call 773-539-1100 and select Technical Support.
