How to Set Number of Stations Connected to an AOR-5 or AOR-10 Series Master Controller
Fault Detection Configuration for AOR-CSE Stations and PSTN Line:
Carrying out this procedure on the controller board is required for proper open/short fault and PSTN/POTS telephone line fault detection on the system.

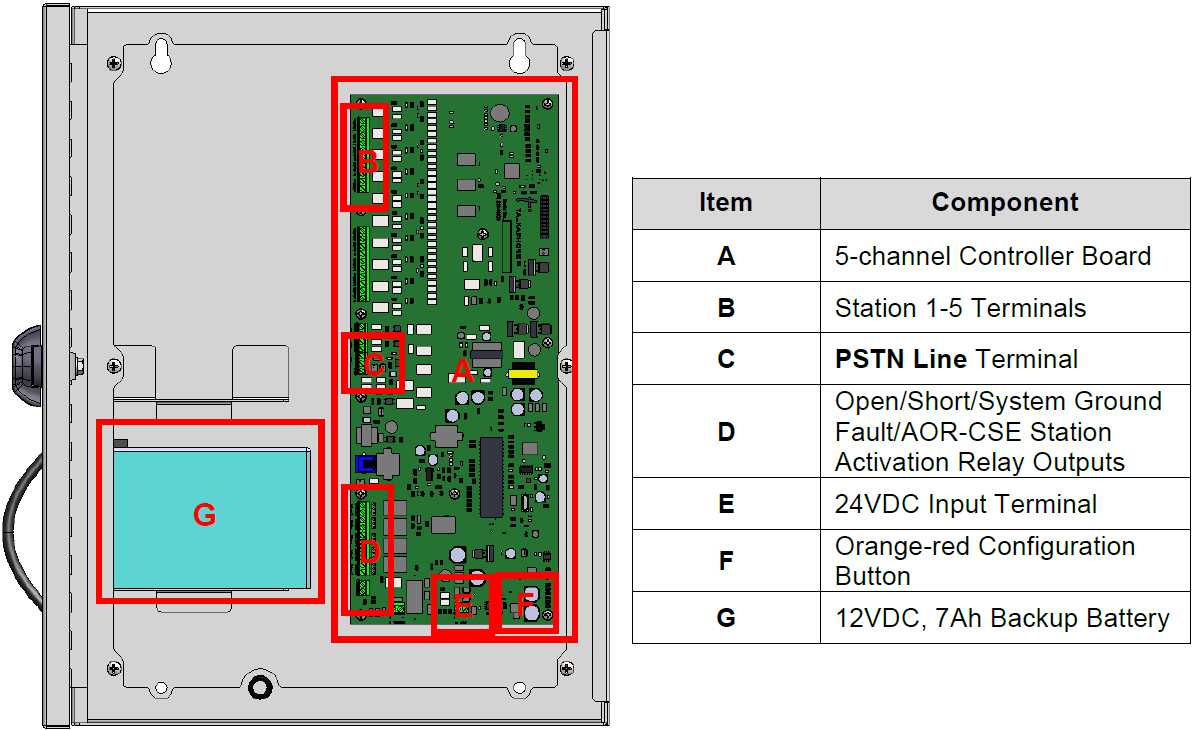

In the lower-right of the controller, there is an orange-red configuration button.
Once you have the AOR-CSE Stations and the PSTN/POTS telephone line (if required) terminated to the controller board, and the controller powered on, press and hold the orange-red button for three (3) seconds—the red LED above it will flash rapidly. When the LED turns solid, release the orange-red button. You will hear a beep to confirm that configuration has been completed.
The AOR-5 and AOR-10 will not allow the call stations to place or receive calls if they have not been detected by the command unit.
