Mounting height for ETP-WM, ETP-WME, ETP-WMS, and ETP-WMSE
I. ADA Height Requirements
In order for a call station to comply with the Americans With Disabilities Act (ADA), all operable parts (i.e. pushbuttons and keypad) must be no higher than 48.00” above the finished floor from a forward reach or 54.00” above the finished floor from a side reach. Please note that the measurements outlined in this document are based on a figure of 47.50” to ensure ADA compliance. These are based on the button layout of the ETP-500, ETP-520, VOIP-500, and VOIP-600 Series Call Stations
II.

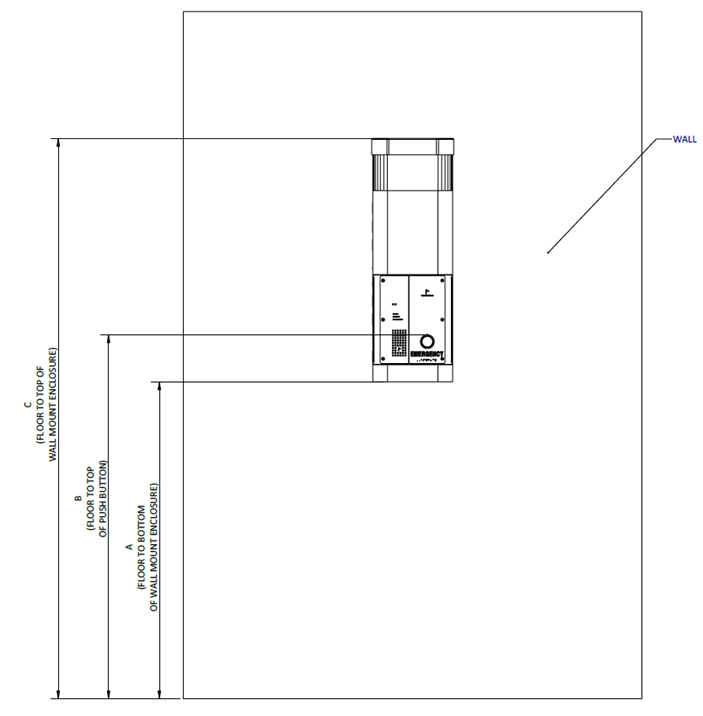

Key Dimensions for 1-Button Call Station Installed
in Wall Mount
|
Wall Mount Series with 1-Button Call Station |
A (Floor to Bottom of Wall Mount) |
B (Floor to Top of Pushbutton) |
C (Floor to Top of Wall Mount) |
|
ETP-WM Series |
41.50 in. |
47.50 in. |
73.37 in. |
|
ETP-WM/E Series |
41.85 in. |
47.50 in. |
73.72 in. |
|
ETP-WMS Series |
41.33 in. |
47.50 in. |
73.20 in. |
|
ETP-WMSE Series |
41.85 in. |
47.50 in. |
73.72 in. |
|
WEBS-WM Series |
40.50 in. |
47.50 in. |
72.44 in. |
III.
Key Dimensions for 2-Button Call Station Installed
in Wall Mount
|
Wall Mount Series with 2-Button Call Station |
A (Floor to Bottom of Wall Mount) |
B (Floor to Top of Secondary Pushbutton) |
C (Floor to Top of Wall Mount) |
|
ETP-WM Series |
38.32 in. |
47.50 in. |
70.19 in. |
|
ETP-WM/E Series |
38.67 in. |
47.50 in. |
70.54 in. |
|
ETP-WMS Series |
38.15 in. |
47.50 in. |
70.02 in. |
|
ETP-WMSE Series |
38.67 in. |
47.50 in. |
70.54 in. |
|
WEBS-WM Series |
37.32 in. |
47.50 in. |
69.26 in. |
IV.

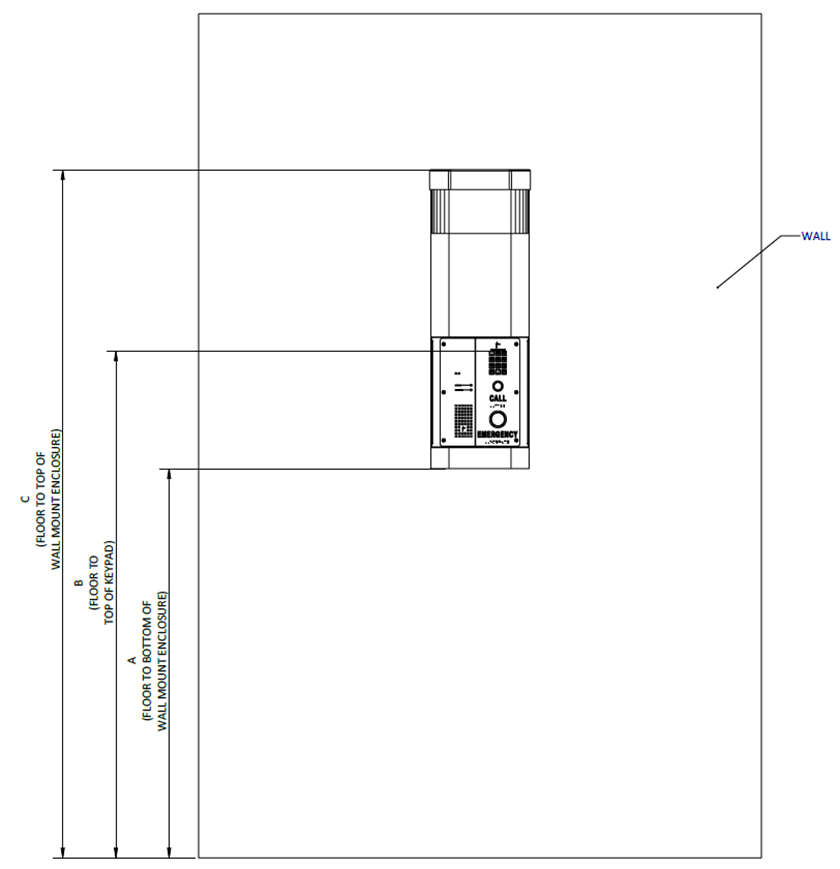

Key Dimensions for 2-Button with Keypad Call
Station Installed in Wall Mount
|
Wall Mount Series with 2-Button/Keypad Call Station |
A (Floor to Bottom of Wall Mount) |
B (Floor to Top of Keypad) |
C (Floor to Top of Wall Mount) |
|
ETP-WM Series |
35.19 in. |
47.50 in. |
67.06 in. |
|
ETP-WM/E Series |
35.54 in. |
47.50 in. |
67.41 in. |
|
ETP-WMS Series |
35.02 in. |
47.50 in. |
66.89 in. |
|
ETP-WMSE Series |
35.54 in. |
47.50 in. |
67.41 in. |
|
WEBS-WM Series |
34.19 in. |
47.50 in. |
66.13 in. |
